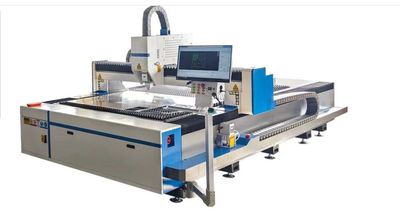

Tender For Supply Laser Cutting Machine
Tender Refernce No.: 2511001
Complete the Tender Document and Non-collusive Tendering Certificate, send to ronald@medicaresplus.com, on or before 1 Feb. 2026.
Specification
Travel Method
Stationary Table, X, Y and Z-axis movement for Head
Control Method
X, Y and Z simultaneously 3-axis control
Max Sheet Size (X,Y)
3m x 1.5m
Max Axis Travel
(X, Y and Z)
3.1m x 1.6m x 0.1m
Max. Axis Position Speed
(X and Y)
240 mm /min
Max. Speed Z axis
100 mm/min
Repeatability
0.005mm
Max. Loading Weight
800Kg
Max. Material Thickness
20mm
Assistant Gas
3 Ports with NC pressure Control
Electrical Requirement
380, 3 Phase, 50-60Hz
Laser Engine
Engine Type
LD Yb Fiber
CW Output Power
3KW
Peak Power
6KW
Power Stability
+/- 2%
Laser wave length
1.08um
Laser Power Mode Selection
CW, gated pulse
Laser Beam Mode Output
Multimode
Beam Divergence
<3mm-mrad
Pulse Frequency
1-10000Hz
Chiller Water cooling capacity
5KW
Interlocks
Electrical, mechanical and chiller
Electrical Requirement
380, 3 phase, 47KVA
Automatic Loader and Unloader
Max. Material Size
3.05m x 1.52m
Material Thickness
1-20mm
Max. Lift Height
300mm
Suction Force
850 kg
Max. material Weight
600kg
No. of suction cup
17
Space Occupied
5.1m x 4m x 2.48m
